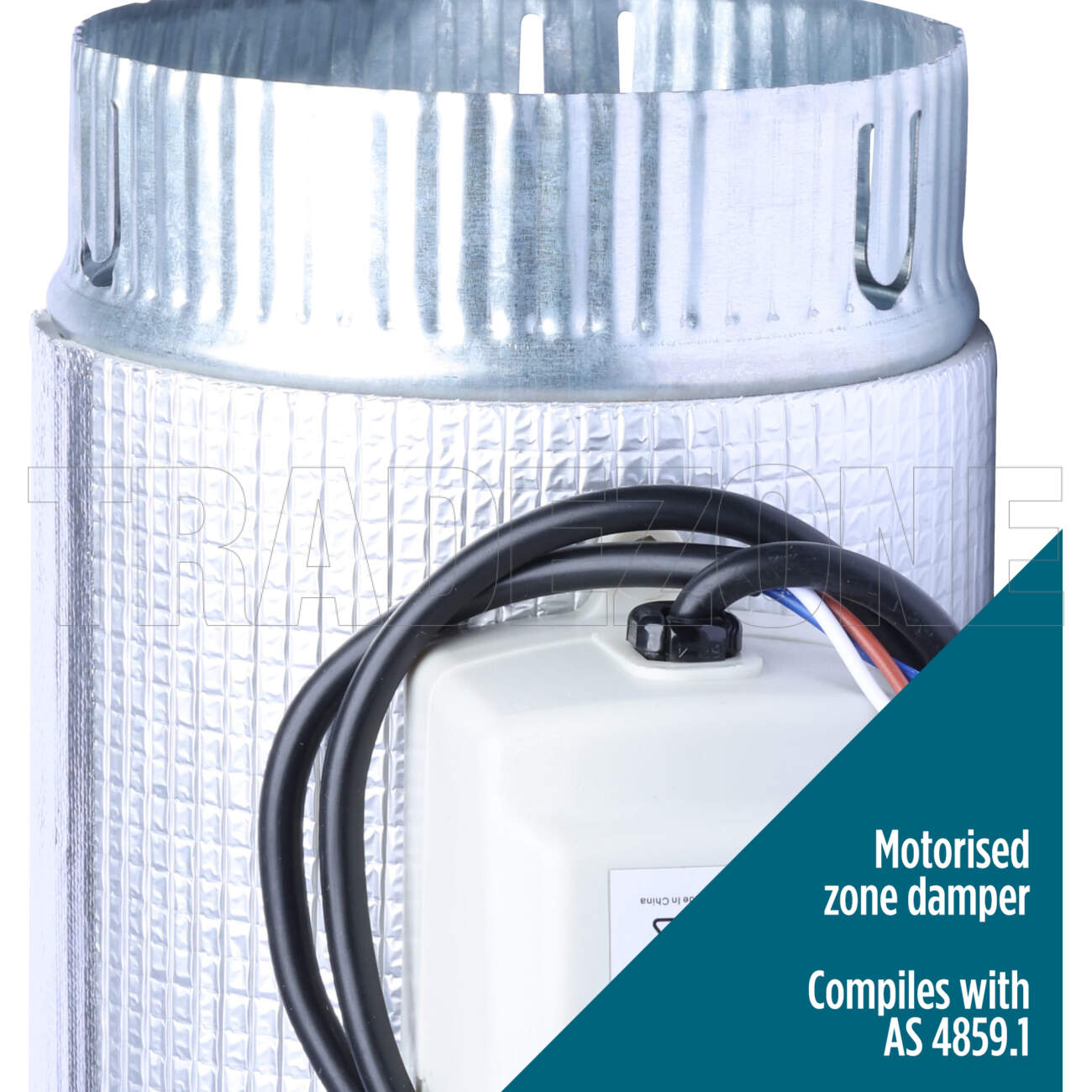

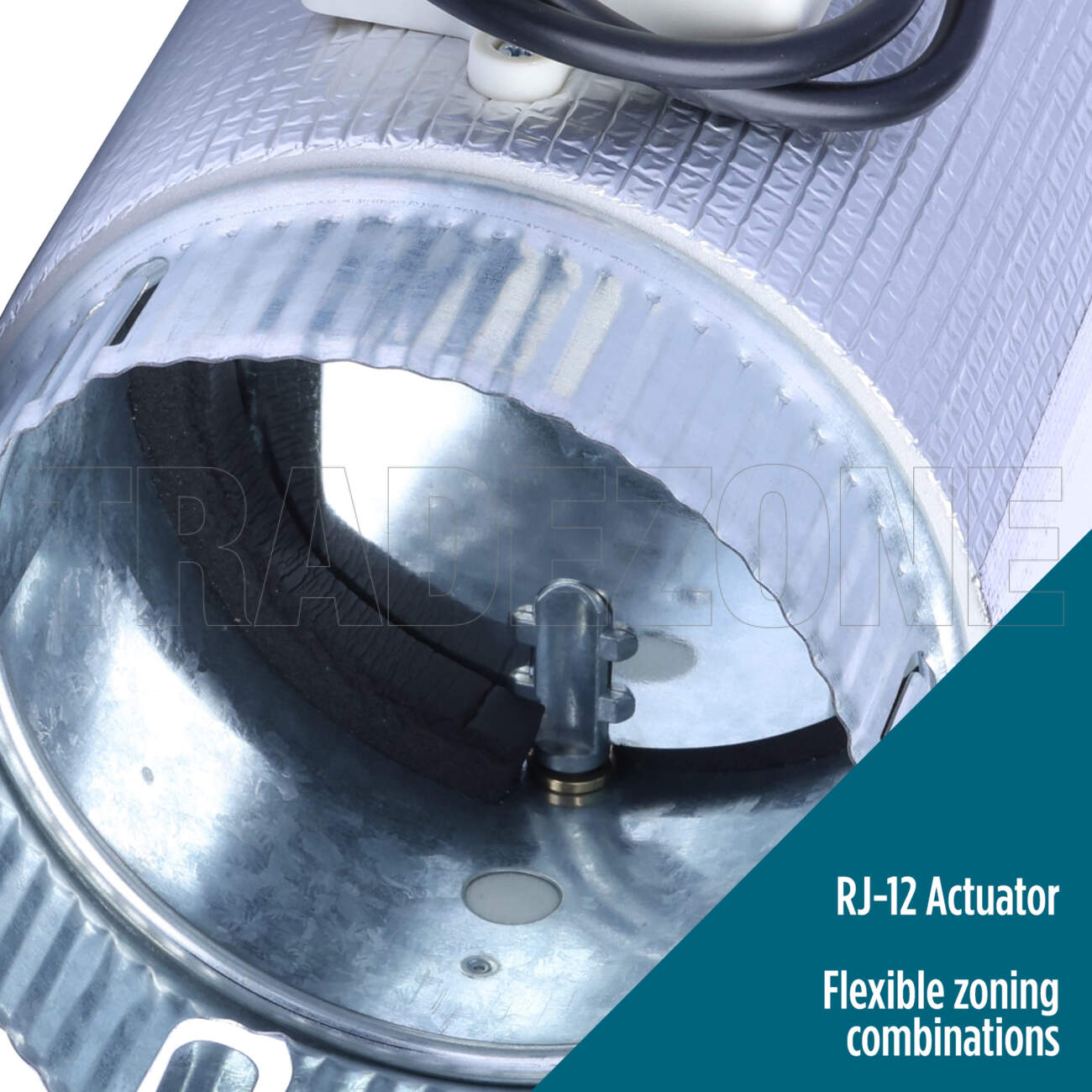

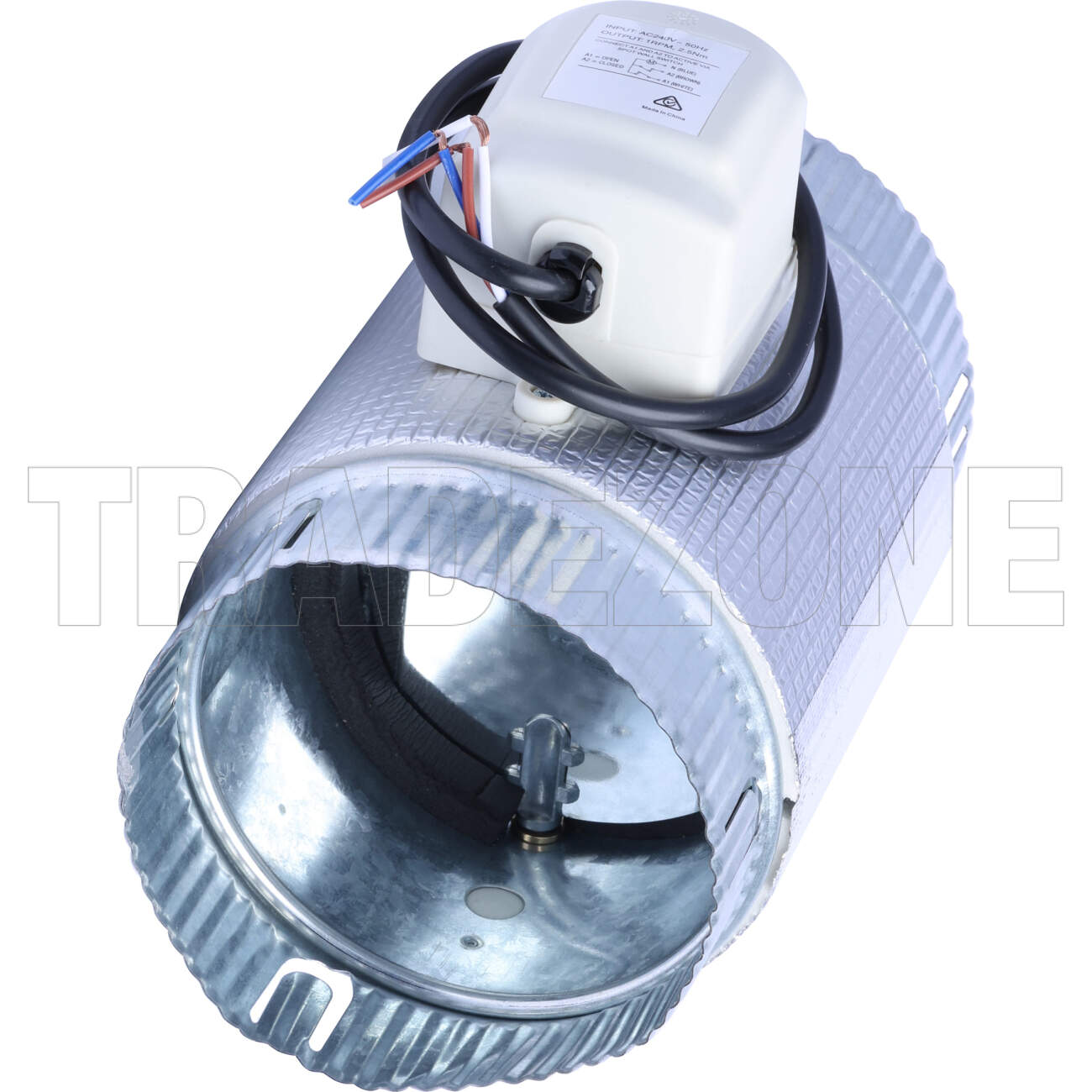

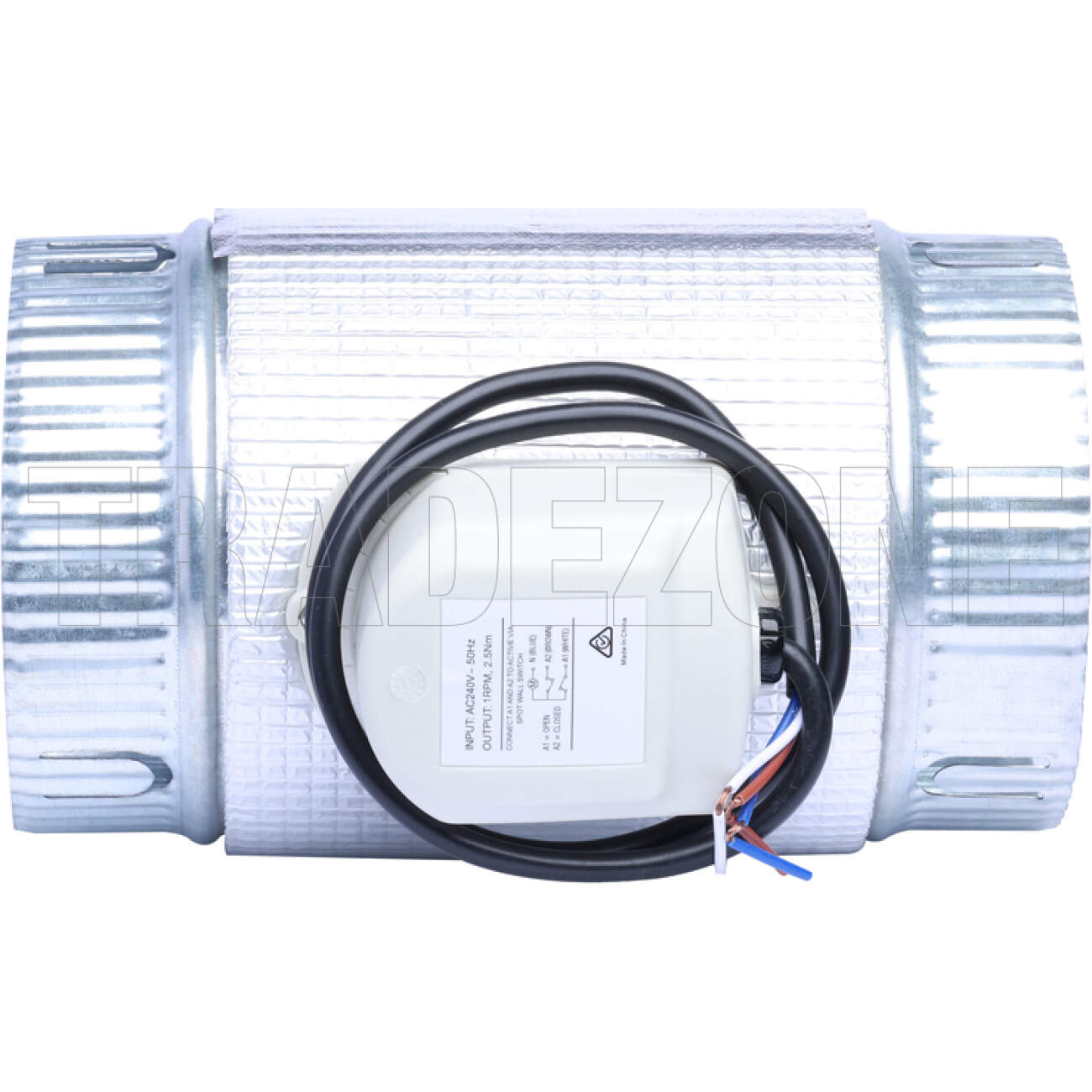

Powerwave Air 150mm DODC Motorised Metal Zone Damper 240 Volt
Powerwave Air 150mm DODC Motorised Metal Zone Damper 240 Volt - Image 2
Powerwave Air 150mm DODC Motorised Metal Zone Damper 240 Volt - Image 3
Powerwave Air 150mm DODC Motorised Metal Zone Damper 240 Volt - Image 4
Powerwave Air 150mm DODC Motorised Metal Zone Damper 240 Volt - Image 5

ZD150

Powerwave Air 150mm DODC Motorised Metal Zone Damper 240 Volt

The Motorised Damper allows the end user to remotely open and close air flows to designated areas.
The damper barrel has swage and Unilock for ease of attachment to the flexible duct sizes. The electrical damper motor has a torque of 2.5Nm and 1RPM in 240V and 24V with a full range of electrical components such as touch pads, transformers and zone cables
Features:

Strong electric motor with torque of 2.5Nm
Electric motor wattage: 5W
Strong barrel and blade with excellent seal
Silver Insulation on the barrel
Dimension tolerance is ±1mm

Also Known As: HVAC damper, motorized damper
Brand: Powerwave Air
Part Number: ZD150
Sub Category: Dampers
Material: Metal

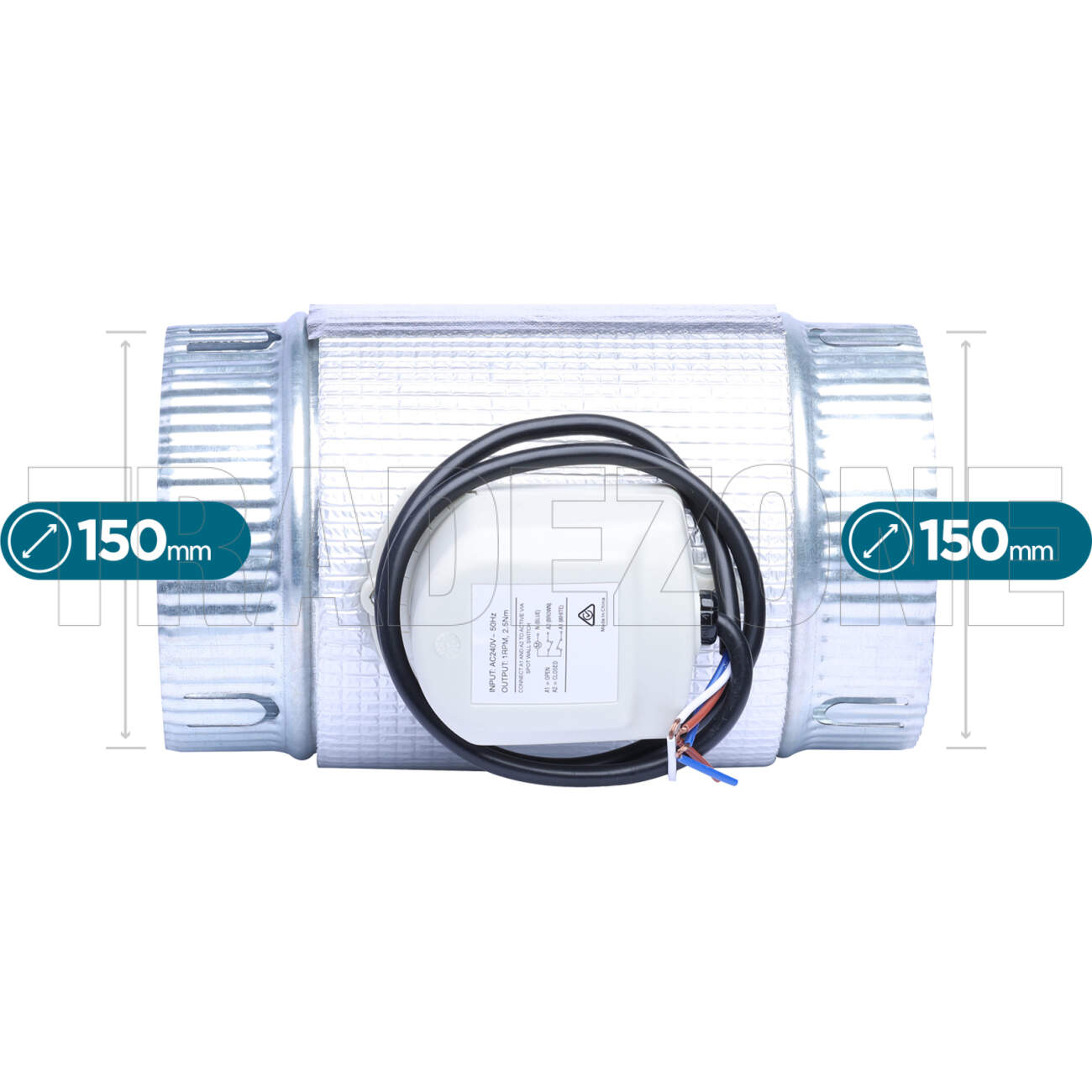

Size: 150mm
Voltage: 240 Volts
With Cable: No

Barcode: 9305000080177
Barcode (Secondary):
Barcode (Tertiary):
Freight Levy: Freight Applies To All Postcodes
Height (mm): 250
Height Packaging (mm): 250
Length (mm): 150
Length Packaging (mm): 150
Weight (kg): 2.0000
Width (mm): 150
Width Packaging (mm): 150
